Storefront Signage
Sep 06, 2026For commercial property developers, architects, and professional sign makers, choosing the right illuminated signage dictates both architectural branding and long-term durability. As a dedicated OEM/ODM manufacturer, our complete range of illuminated letters and signage is precision-engineered to meet stringent municipal electrical codes and international safety standards.
High-impact front-illuminated signage engineered with optical-grade cast acrylic faces and durable aluminum returns (Trimless or Trim-cap). Designed for high commercial street visibility and shopping center tenant branding.

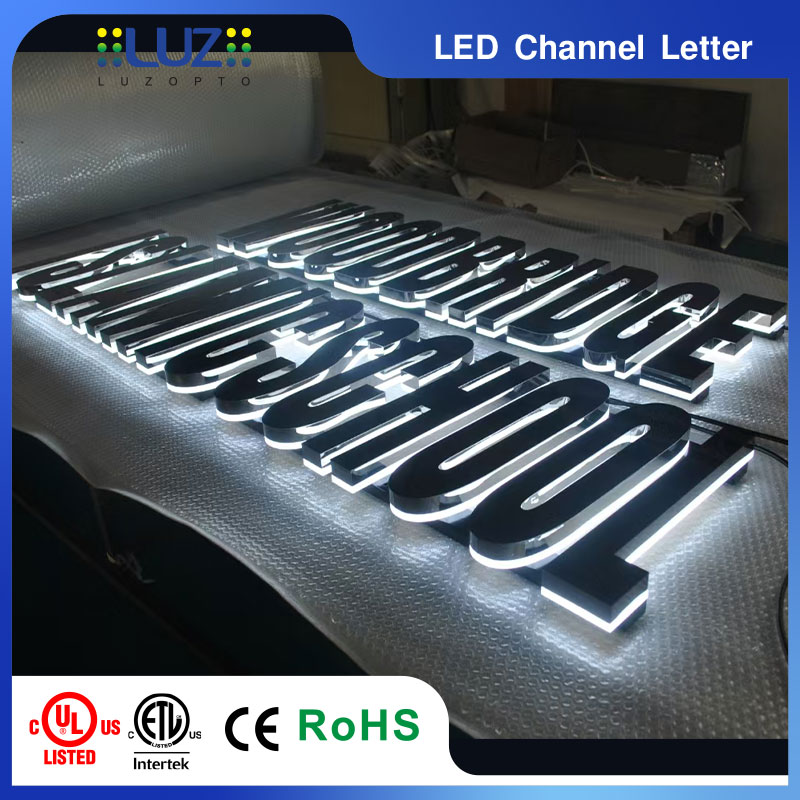

Sophisticated rear halo lighting projecting a soft ambient glow onto the mounting wall. Fabricated with heavy-gauge 304/316 stainless steel face and clear acrylic backplate, elevated with precision-threaded mounting standoffs.

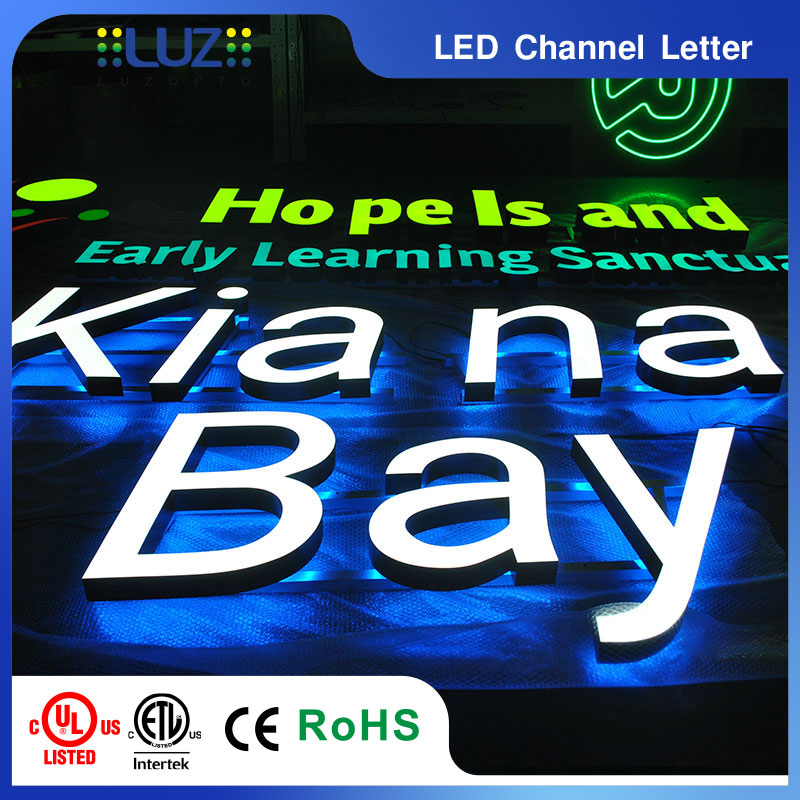

Combines vibrant face luminescence with architectural wall halo wash. Internal baffling allows independent color control for the front face and back glow, delivering exceptional 3D contrast for premium flagship stores.

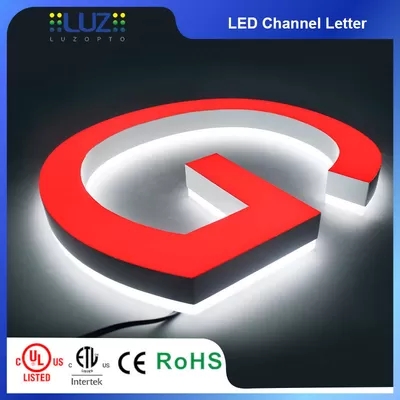

Ultra-slim 3D letters carved from 20mm to 30mm solid blocks of optical acrylic with back-embedded micro LEDs. Enables sharp, intricate typography with stroke widths down to 8mm, ideal for luxury boutiques, hotel receptions, and cosmetic counters.

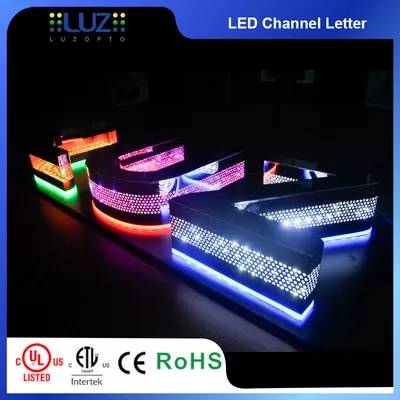

Fabricated with CNC laser-perforated aluminum or stainless steel bodies, fitted with waterproof exposed LED pixel nodes. Delivers vintage marquee character and long-distance nighttime visibility for entertainment complexes and rooftops.

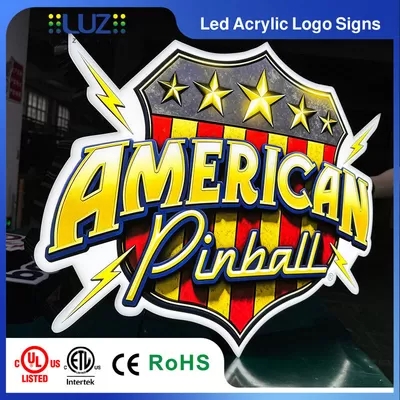

Custom heavy-duty aluminum cabinet boxes featuring 3D push-through laser-cut acrylic lettering, contoured profiles, and double-sided projecting blade signs. Uniform edge-to-edge illumination without shadows or hotspots.
Recommended: Front-Lit / Raceway Mount
Engineered for high daylight contrast and maximum nighttime luminance. Utilizing raceway mounts minimizes exterior wall penetrations to satisfy shopping center property rules.
Recommended: Reverse Halo-Lit (Stainless)
Subtle architectural elegance with low forward glare. Fabricated with brushed 304/316 stainless steel to complement architectural stone, glass curtain walls, and composite facades.
Recommended: Solid Mini Acrylic / Edge-Lit
Built for close-up viewing and delicate font strokes down to 8mm. CNC precision milled from solid acrylic blocks with high-end automotive-grade paint finishes.
Recommended: Exposed Pixel / Heavy-Gauge Box
Designed for extreme viewing distances exceeding 1,000 feet. Features reinforced welded 5052 aluminum structures designed to withstand high wind load pressures.
| Component | Standard Commercial | Heavy-Duty / Coastal | Engineering Standard |
|---|---|---|---|
| Letter Face | 3/16 inch (4.5mm) Cast Acrylic | High-Impact Polycarbonate | UV resistant, anti-yellowing cast acrylic |
| Returns (Sides) | 0.040 inch Formed Aluminum Coil | 0.063 / 0.080 inch Welded Aluminum | Corrosion-proof 5052 alloy or 304/316 stainless |
| Backplate | 0.040 inch Mill Aluminum | 0.063 inch Clear / Frosted Acrylic | CNC weep holes drilled for drainage |
| LED Modules | IP65 SMD 2835 (12V) | IP67/IP68 Constant Current (12V/24V) | 160-deg optical lens, 50,000 hour lifespan |
| Power Units | UL Class 2 Rainproof Power Supply | IP67 Mean Well Class 2 Unit | UL/cUL and CE compliant (NEC 600) |
Yes. Our products are manufactured to comply with UL/cUL requirements under UL 48 standards for electric signs and utilize Class 2 low-voltage power units (NEC 600). We also provide full CE and RoHS conformity for projects installed in the European Union.
Direct Mount attaches each letter individually to the wall for a seamless floating aesthetic, requiring individual wire holes per character. Raceway Mount fixes all letters to a shared aluminum extrusion box containing power supplies, minimizing wall penetrations to just a few mounting bolts.
Ambient temperature variations inevitably cause condensation inside enclosed metal cans. Pre-drilled CNC weep holes located at the lowest gravity point of each letter allow moisture to escape, preventing electrical short circuits and interior discoloration.
Yes. Every wholesale project order includes a full-scale (1:1) computer-plotted paper or vinyl mounting pattern clearly indicating standoff stud locations, wire feed points, and leveling centerlines to expedite on-site field installation.
